187 - Series Thermal Circuit Breakers - Panel Mount

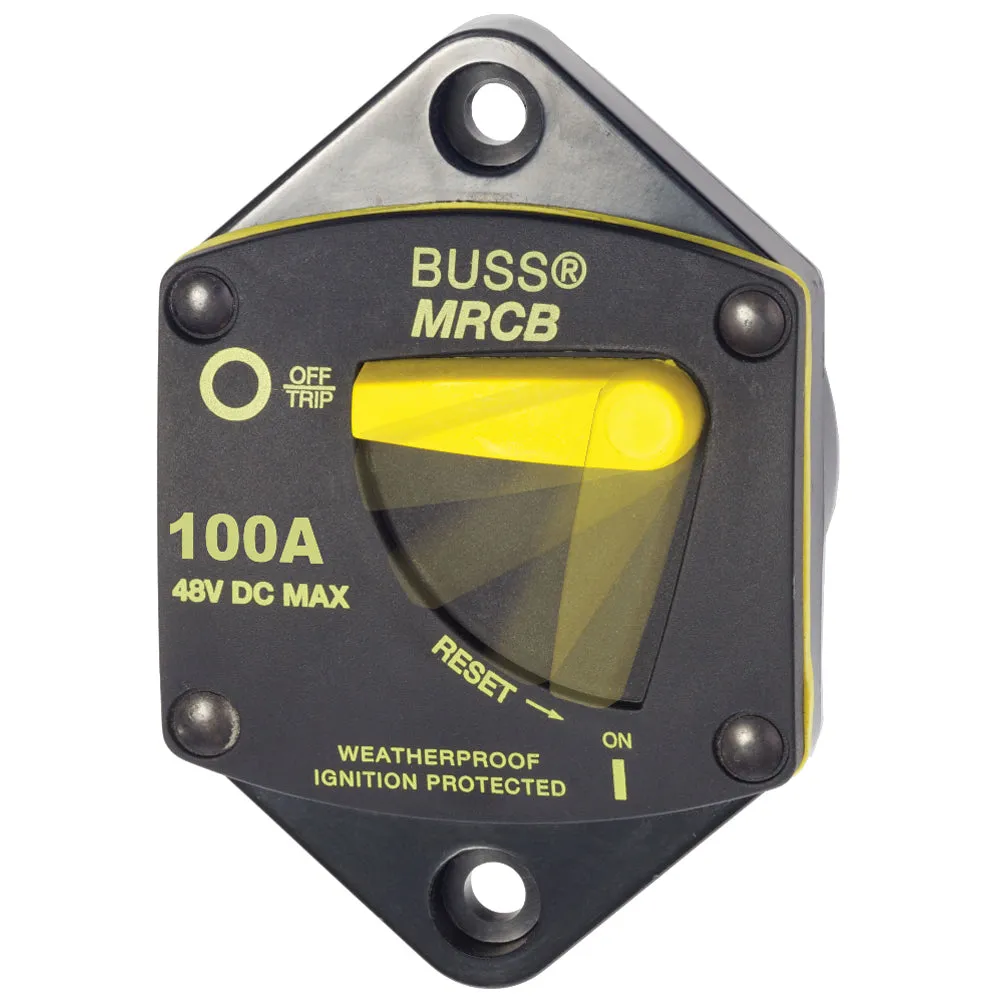

100 Amp Circuit Breaker

PN:  7044

Features:

• Combines switching and circuit protection into a single device




• All components meet SAE J1171 external ignition protection requirements




• Clear, single lever operation




• "Trip Free" design cannot be held "ON" during fault current condition




• Waterproof




• Recessed mounting holes for clean appearance




• Self-trimming case eliminates the need for mounting panels or trim bezels




• Round case permits easy installation with standard sized hole saw




• Large clearance around terminal studs accept heavy gauge wire lugs




• Robust 5/16 terminals provide high torque connections




• Large lever with vertical/horizontal orientation provides indication of trip status




• Ignition protected - safe for installation aboard gasoline powered boats

Specifications


Circuit Breaker Class:
Type III - Switchable / Manual Reset - Trip Free

Type:
Thermally Responsive Bi-Metal Blade

Case Material:
Thermoset Polyester

Voltage Rating:
48 Volts DC Maximum

Interrupt Rating:
5,000 Amperes @12 Volts DC


3,000 Amperes @24 Volts DC


1,500 Amperes @42 Volts DC

Operating Temperature Range:
-25C° to 82C°
